Tie-Top Pin Insulators

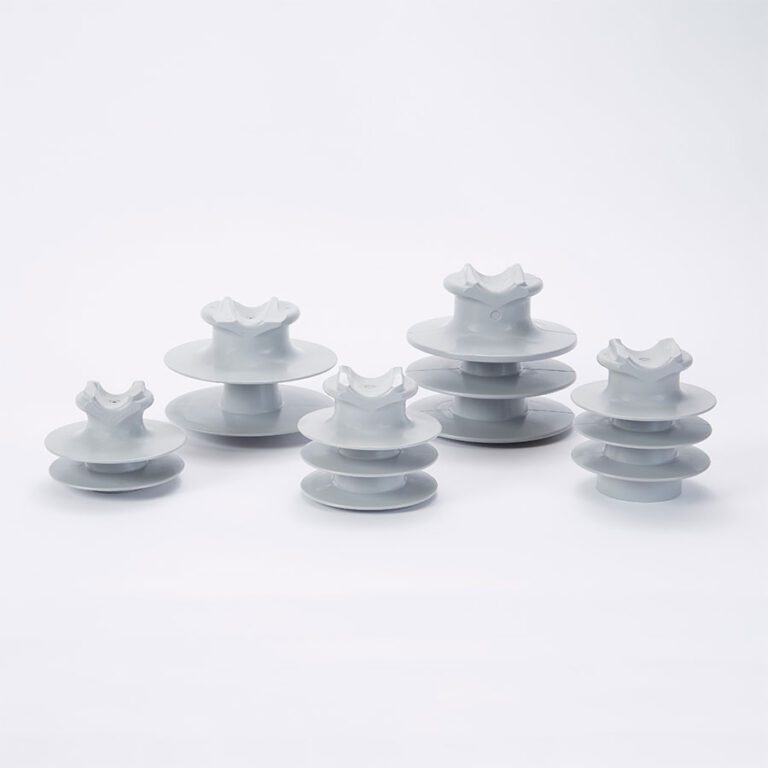

Group shot of tie top insulators

Part Number
Voltage
ANSI Class
Neck Size
Pin Size (in)
Spec Sheet
HPI-55-3
15kV
55-3
C
1
HPI-55-4
15kV
55-4
F
1
HPI-55-5-01
25kV
55-5
F
1
HPI-55-5-02
25kV
55-5
F
1-3/8
HPI-25-01
25kV
55-5
F
1
HPI-25-02
25kV
55-5
F
1-3/8
HPI-25J-01
25kV
56-1
J
1
HPI-25J-02
25kV
56-1
J
1-3/8
HPI-35-01 / 02
35kV
55-6
F / J
1 / 1-3/8
HPI-35J-01
35kV
55-6
J
1
HPI-35J-02
35kV
55-7
J
1-3/8

Vise-Top Insulators

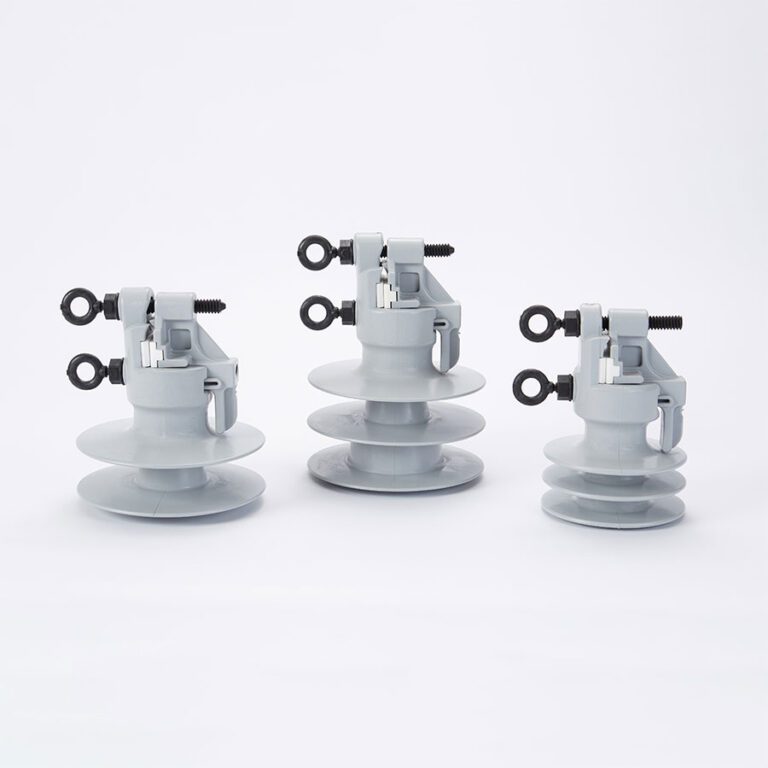

Group shot of vise top insulators

Part Number
Description
Volatge
ANSI Class
Neck Size
Pin Size (in)
Spec Sheet
HPI-15VTP
with plastic inserts for use on covered & bare aluminum or copper conductors
15kV
55-3, 55-4
C
1
HPI-15VTM
with metal inserts for use on bare aluminum conductors
15kV
55-3, 55-4
C
1
HPI-15VTC
with Composite inserts for use on all conductor types
15kV
55-3, 55-4
C
1
HPI-25VTP-01
with plastic inserts for use on covered & bare aluminum or copper conductors
25kV
55-5
F
1
HPI-25VTP-02
with plastic inserts for use on covered & bare aluminum or copper conductors
25kV
56-1
F
1-3/8
HPI-25VTM-01
with metal inserts for use on bare aluminum conductors
25kV
55-5
F
1
HPI-25VTM-02
with metal inserts for use on bare aluminum conductors
25kV
56-1
F
1-3/8
HPI-25VTC-01
with Composite inserts for use on all conductor types
25kV
55-5
F
1
HPI-25VTC-02
with Composite inserts for use on all conductor types
25kV
56-1
F
1-3/8
HPI-35VTP-01
with plastic inserts for use on covered & bare aluminum or copper conductors
35kV
55-6
F
1
HPI-35VTP-02
with plastic inserts for use on covered & bare aluminum or copper conductors
35kV
55-7
F
1-3/8
HPI-35VTM-01
with metal inserts for use on bare aluminum conductors
35kV
55-6
F
1
HPI-35VTM-02
with metal inserts for use on bare aluminum conductors
35kV
55-7
F
1-3/8
HPI-35VTC-01
with Composite inserts for use on all conductor types
35kV
55-6
F
1
HPI-35VTC-02
with Composite inserts for use on all conductor types
35kV
55-7
F
1-3/8

Line Post Insulators

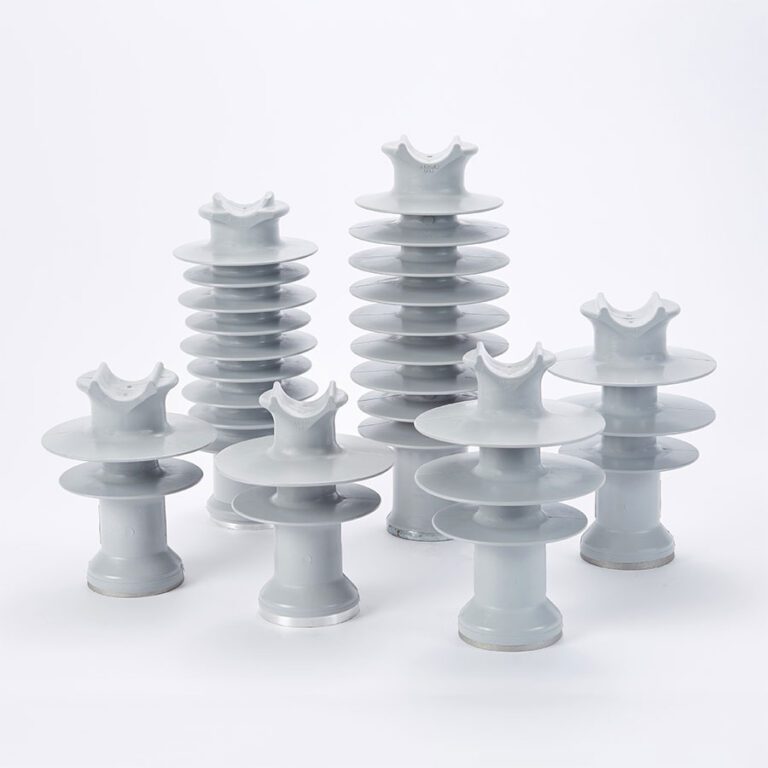

Group Shot of Line Post Insulators

Part Number
Description
Voltage
ANSI Class
Stud Size (in)
Spec Sheet
HPI-LP-9C
C Neck
15kV
51-1C
3/4 -UNC 10
HPI-LP-9F
F Neck
15kV
51-1F
3/4 -UNC 10
HPI-LP-11C
C Neck
25kV
51-2C
3/4 -UNC 10
HPI-LP-11F
F Neck
25kV
51-2F
3/4 -UNC 10
HPI-LP-14FA
F Neck, Alum. Base
25/35kV
51-4F
3/4 -UNC 10
HPI-LP-14FS
F Neck, Steel Base
25/35kV
51-4F
3/4 -UNC 10
HPI-LP-16F
F Neck, Steel Base
35/46kV
51-4F
3/4 -UNC 10

Clamp-Top Line Post Insulators

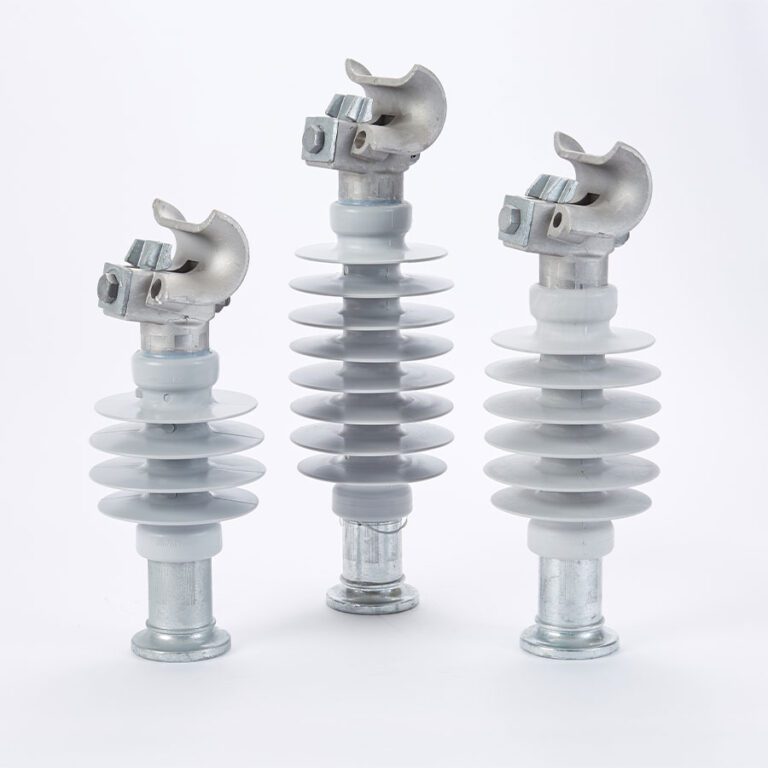

Group Shot of clamp top line post insulators

Part Number
Voltage
Weight (lbs)
ANSI Class
Stud Size (in)
Spec Sheet
HPI-CLP-15
25kV
11.4
57-11 & 21 / 51-12 & 22
3/4 -UNC 10
HPI-CLP-17
35kV
12.7
57-12 & 22 / 51-13 & 23
3/4 -UNC 10
HPI-CLP-20
46kV
14
57-13 & 23 / 51-14 & 24
3/4 -UNC 10
HPI-CLP-25
69kV
15.75
57-14 & 24 / 51-15 & 25
3/4 -UNC 10

Trunnion Line Post Insulators

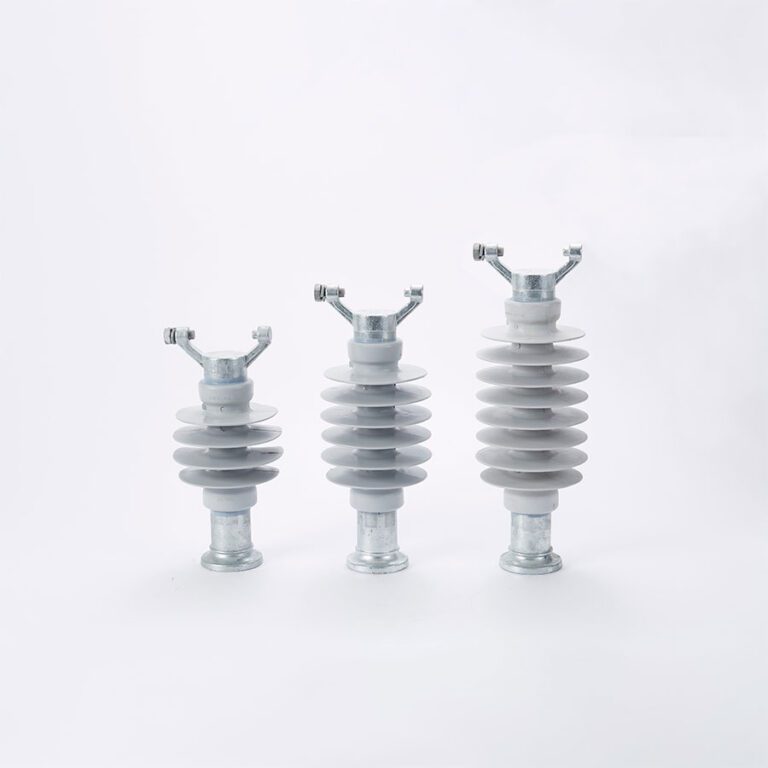

Group shot of trunnion line post insulators

Part Number
Description
Voltage
ANSI Class
Stud Size (in)
Spec Sheet
HPI-TLP-15V
Vertical Position
25kV
57-11 / 51-12
3/4 -UNC 10
HPI-TLP-15H
Horizontal Position
25kV
57-21 / 51-22
3/4 -UNC 10
HPI-TLP-17V
Vertical Position
35kV
57-12 / 51-13
3/4 -UNC 10
HPI-TLP-17H
Horizontal Position
35kV
57-22 / 51-23
3/4 -UNC 10
HPI-TLP-20V
Vertical Position
46kV
57-13 / 51-14
3/4 -UNC 10
HPI-TLP-20H
Horizontal Position
46kV
57-23 / 51-24
3/4 -UNC 10
HPI-TLP-25V
Vertical Position
69kV
57-14 / 51-15
3/4 -UNC 10
HPI-TLP-25H
Horizontal Position
69kV
57-24 / 51-25
3/4 -UNC 10

Station Post Insulators

Station Post

Part Number
Voltage
ASNI
Tech. Ref.
Stud Size (in)
Height (in)
Spec Sheet
HPI-SP-10
15kV
C29.19
TR-205P
4 Hole, 1/2″-13
10
HPI-SP-14
25kV
C29.19
TR-208P
4 Hole, 1/2″-13
14
HPI-SP-18
35kV
C29.19
TR-210P
4 Hole, 1/2″-13
18
HPI-SP-22
46kV
C29.19
TR-214P
4 Hole, 1/2″-13
22
HPI-SP-30
69kV
C29.19
TR-216P
4 Hole, 1/2″-13
30

Specialty Insulators

Cable Restraint Insulator

Part Number
Description
Spec Sheet
High Temperature Insulators
High Temperature (HT) Insulators are capable of operating at 200°C Maximum Continuous Conductor Temperature when factored with the amount of mechanical loading applied
Fire Retardant Insulators
Fire Retardant (FR) Insulators will self-extinguish after the heat source is removed
White Insulators
White (W) Insulators provide neutral conductor or phase identification
Spool Insulators
Hendrix Spool Insulators are a direct replacement for porcelain spool insulators. They are more durable and reliable, lightweight, and resistant to impact damage, breakage and vandalism

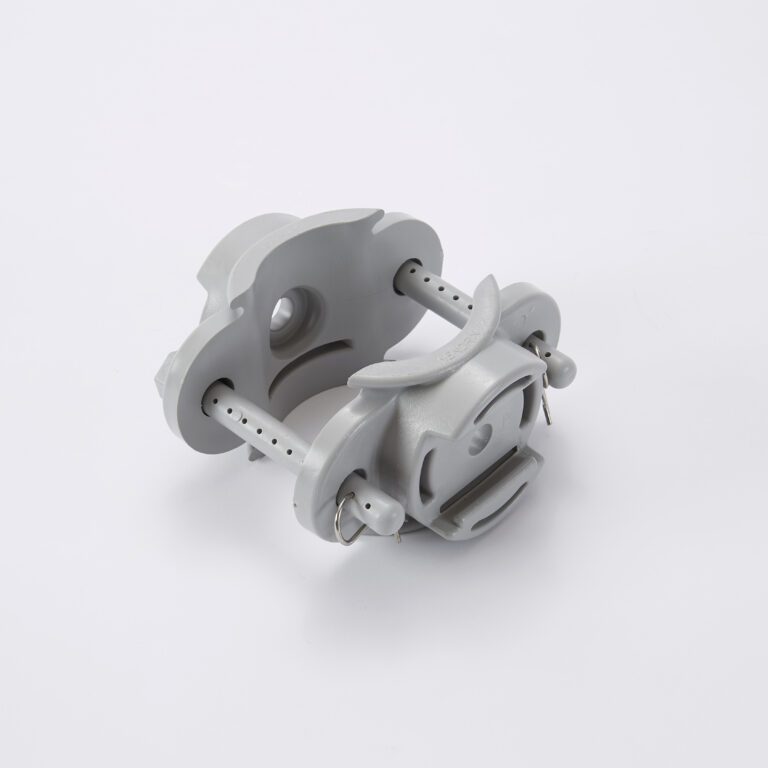

HPI-CRI-U
Cable Restraint Insulator is designed for UD cable mounting and training in vaults, substations, cabinet and risers. Multiposition mounting and made from UV resistant Polymers
HPI-2030
This Hendrix Spool Insulator is more durable and reliable than traditional wet-process porcelain insulators. It is designed with a non-standard neckand compatible with standard mounting hardware. It is a direct replacement for 2030 porcelain insulators.

Accessories

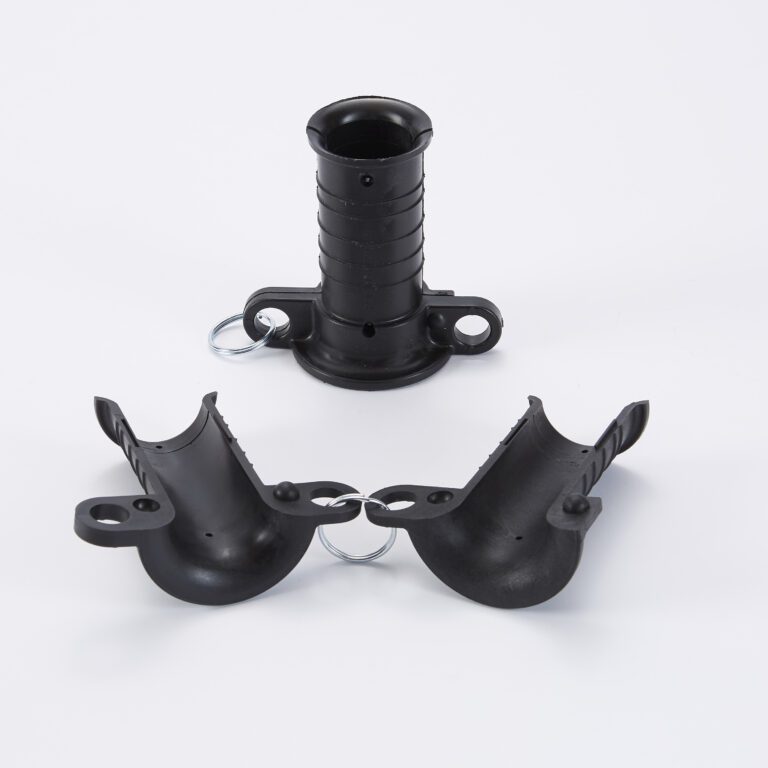

Stringing tool for use with vise top insulators

Part Number
Description
Spec Sheet
VTST-1
Stringing tool for use with the Vise Top insulators, short style
VTST-2
Stringing tool for use with the Vise Top insulators, long style
B-1
Replacement bolts for the Vise Top insulators
SBS
3/4” stud bolt, short; 5/8″ x 1- 3/4”; for steel arms and brackets
SBL-01
3/4” stud bolt, long; 5/8″ x 6-9/16”; for crossarms (wood or fiberglass)

Secondary Voltage

Product photo of secondary cable spreader

Part Number
Description
Spec Sheet
S8-800
Vertical Secondary Spacer- Made out Gray UV Resistant HDPE – High Density Polyethylene material
B-200A
Aluminum Single Bail for single mid span taps * For use with S8-800
B-200
Aluminum Double Bail for double mid-span taps * For use with S8-800

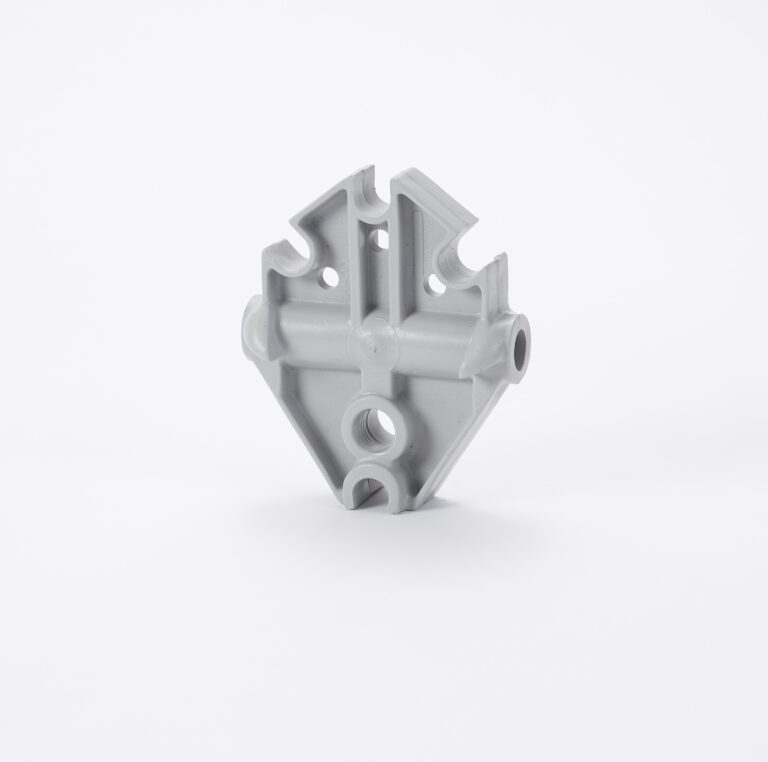

S604GR
Secondary Cable Spreader- Made out Gray UV Resistant HDPE – High Density Polyethylene material
ST-3
Cable Spreader Tool

Wildlife Protection



Product photo of wildlife guard

Part Number
Description
Spec Sheet
HRS-VTU
Raptor Shield Kit for Universal Vise-Top insulators
HRS-VT-KIT
Vise Top Insulator Cover kit containing one (1) center piece, two (2) extension arms and six (6) connector pins. Designed to protect wildlife from live line contact, reduce power outages and assist in the implementation of your Avian Protection Plan.
HRS-TT-KIT
Tie Top Insulator Cover kit containing one (1) center piece, two (2) extension arms and six (6) connector pins. Designed to protect wildlife from live line contact, reduce power outages and assist in the implementation of your Avvian Protection Plan.
HPP-24
The HPP-24 Perch Preventer is a unique, hinged, adjustable device designed to prevent birds from landing between phases on transmission and distribution structures.

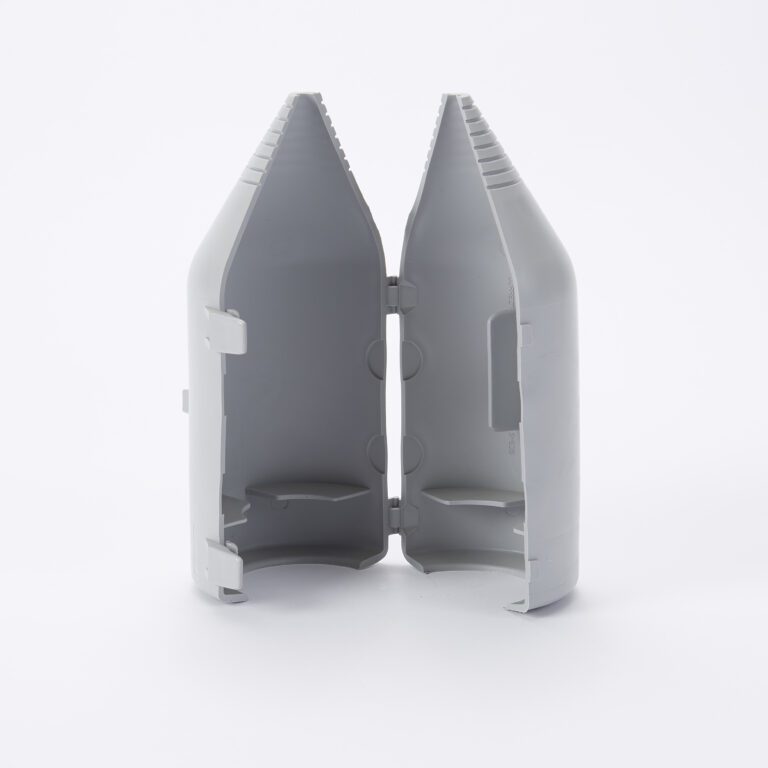

BG-9
The BG-9 is a wildlife guard that is installed on the bushings of transformers and other power equipment. It covers the lead wire and electrical connections to the bushings and prevents contact by birds and squirrels.
LINEDUC
LINEDUC is a protectiveguard which can be easily clipped onto bare or covered conductors, messengers, service drops and communication cables. It protects conductors from abrasion and contact by tree limbs and animals.
LINEDUC-BRIDGE
LINEDUC -BRIDGE is an assembly of at least teo protective LINEDUC guards connected by a bridge. It is intended to cover a long distance of bare conductor such as a full span length.
